In high-precision testing fields such as aerospace, new energy, and power electronics, the stable output and safety protection of the power supply directly determine the success of tests. The constant voltage and current limit (CV/CL) function of the Momentum 400S/H series programmable AC power supply, through precise mode switching, flexible parameter configuration, and rapid abnormal response, serves as a 'dual safety shield' for devices and power supplies in testing scenarios, making power testing under harsh conditions more stable and reliable.

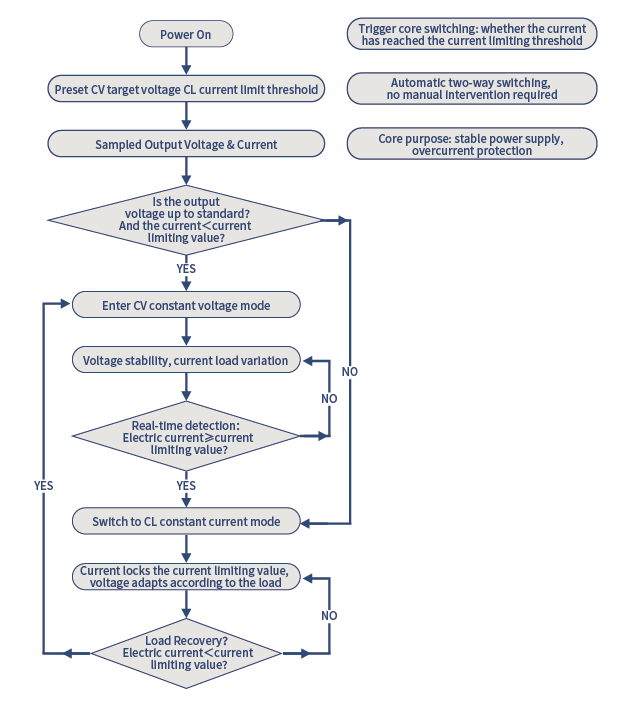

As a high-performance power supply product developed by APM Technology, the Momentum 400S/H series deeply integrates CV (constant voltage) and CC (constant current) modes, achieving intelligent coordinated switching. The core trigger point revolves around whether the output current reaches the current limit threshold, with no manual intervention required throughout, perfectly adapting to dynamic load changes in complex testing environments. After the power supply is turned on, the CV target voltage and CL current limit threshold can be precisely preset, and the output electrical parameters are sampled in real time; when the load impedance is normal, the CV constant voltage mode predominates, providing stable output of the set voltage while the current flexibly varies with the load power, meeting the stringent voltage accuracy requirements in aerospace, industrial manufacturing, and other scenarios.
When abnormalities such as load short circuits or overloads occur during testing, and the load impedance suddenly drops causing the current to spike to the current-limiting threshold, the Momentum 400S/H will instantly switch to CC constant current mode, firmly locking the output current at the set value while the voltage dynamically adjusts to the load decrease. This fundamentally prevents large currents from damaging expensive devices under test and the power supply itself. Additionally, the series power supplies support an adjustable delay time of 0.001s to 10s. If the overcurrent condition recovers within the delay time, the power supply will seamlessly revert to CV constant voltage mode; if the abnormality persists, the power supply will automatically shut off the output, completely cutting off the fault loop, achieving full-process safety protection of 'alert - protection - cutoff'.

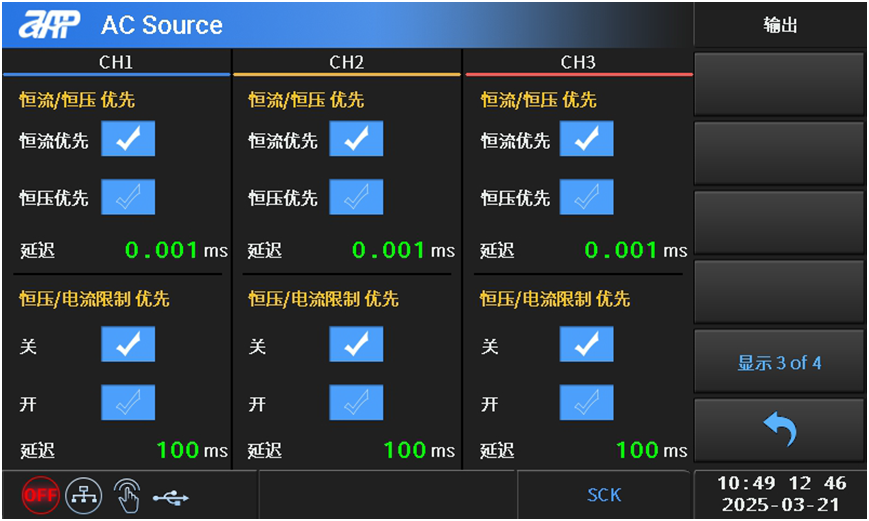

To accommodate the personalized requirements of different testing scenarios, the constant voltage and current limiting functions of the Momentum 400S/H series are also equipped with a flexible configuration design: the overvoltage protection value can be freely set within the range of 0.0V to 110% of the rated voltage. Coupled with the foldback transition function, this allows for smoother switching between CV and CC modes. Even in complex power environments, such as high-frequency operations and harmonic interference, it can maintain protection accuracy. Whether it is high-frequency anti-interference testing of aerospace equipment or overload simulation testing of new energy devices, its constant voltage and current limiting functions can precisely match testing requirements, balancing power supply stability with protection safety.
Beyond the hardcore constant voltage and current limiting protection, the Momentum 400S/H series is also supported by high power density, multi-mode output, and high-precision measurement. Its output frequency can reach up to 5000Hz, featuring built-in aviation-specific voltage curves and 50th harmonic simulation functions. Complemented by a full-touch control interface and multi-interface remote control, it makes high-precision testing more efficient. As one of its core safety protections, the constant voltage and current limiting function, in combination with over-temperature, over-power, and other multiple protections, provides a cumulative effect, enabling this power supply to not only deliver output confidently but also offer robust protection in stringent testing scenarios across aerospace, scientific research, education, and intelligent manufacturing.
From the precise R&D testing in laboratories to the batch quality inspections on production lines, the constant voltage and current limiting functions of the Momentum 400S/H series, with intelligent switching logic, flexible parameter configuration, and rapid anomaly response, establish a robust safety barrier for electrical testing, ensuring that every test is stable, controllable, and worry-free.
